304 Stainless Steel Countersunk Screw Inspection for Serbia: M6 x 15 Packing and Shipment

This order involved M6 x 15 hex socket countersunk screws purchased for a customer in Serbia. The carton labels identify the material as 304 stainless steel and show a quantity of 6,000 pieces on the labeled packs. Before shipment, the screws were checked at the supplier, packed into cartons and secured on a wooden pallet for warehouse handling and export preparation.

For a bulk fastener order, the screw itself is only one part of the job. The model description, thread size, length, head geometry, drive, material, piece count, carton label and outer packing all have to agree. A small error repeated across thousands of pieces quickly becomes an expensive assembly problem at the customer's factory.

The Serbian buyer's requirement

The buyer needed a metric stainless steel screw with a countersunk head and internal hex drive. In European purchasing language, this is commonly described as a hex socket countersunk head screw or socket countersunk screw. North American buyers may search for the same general head and drive combination as a flat head socket cap screw.

The functional reason for choosing a countersunk screw is straightforward: when installed in a correctly machined countersunk recess, the head can sit flush with or below the surrounding surface. That makes the fastener useful for equipment covers, brackets, fabricated metal assemblies, machine guards and other places where a protruding bolt head would interfere with movement, fit or appearance.

For this order, the visible packing labels show:

• Product: hexagon socket countersunk screw.
• Nominal thread size and length: M6 x 15.
• Material description: 304 stainless steel.
• Labeled quantity: 6,000 pieces.
• Packing format: inner bags, individual cartons and palletized outer packing.

The photos do not show a DIN or ISO standard number, property class, thread tolerance or passivation requirement. Those details should be written into the purchase specification whenever they are critical. A description such as “M6 stainless countersunk screw” is not enough to control every dimension or mechanical property.

On-site inspection of the actual screw batch

The inspection video records the actual batch before carton packing. Multiple clear bags of stainless steel screws are visible at the work area, and individual pieces were taken out for a closer check. This gave the inspector a direct view of the screw head, internal hex recess, threaded body and general surface condition rather than relying only on a supplier catalog image.

The recorded inspection focused on the points that can be checked directly from the available batch and order information:

• The screw type matched the ordered countersunk-head and internal-hex configuration.
• The head profile and socket recess were checked for obvious deformation or incomplete forming.
• Threaded bodies were reviewed for visible damage, heavy burrs and mixed parts.
• The stainless surface was checked for obvious rust, oil contamination and major handling marks.
• Samples were compared with the ordered M6 x 15 description.
• Bagged quantities were organized for carton packing and label control.

The video is useful because it connects the order paperwork to real goods on the factory floor. It also shows the scale of the batch more honestly than a single close-up product photograph.

What matters when inspecting countersunk screws

Head profile and countersunk fit

The head must fit the customer's countersunk recess without sitting unexpectedly high or pulling too deeply into the component. Buyers should define the applicable drawing or standard, countersunk angle and acceptable head dimensions. A visual check can identify badly formed heads, but dimensional acceptance should be based on the agreed specification.

Internal hex socket

The hex recess needs enough definition and depth for the installation tool to engage. Rounded corners, shallow sockets or forming debris can cause the bit to slip during assembly. For production-line use, the buyer should also confirm the intended drive size and installation torque.

Thread size and length

M6 identifies the nominal metric thread diameter, while 15mm identifies the ordered length. Thread pitch, tolerance and the point from which length is measured should follow the agreed product definition. Sample checks with suitable measuring tools and thread gauges are more reliable than comparing appearance alone.

Stainless steel grade

The cartons in this order are labeled as 304 stainless steel. Buyers who require formal material verification should state the required certificate or testing method before ordering. The terms 304 stainless steel and A2 stainless steel are often used in overlapping commercial contexts, but the order should use one controlled material specification rather than assuming every supplier interprets the terms identically.

Surface condition and cleanliness

Stainless steel fasteners should arrive free from significant corrosion, foreign metal contamination, heavy oil and damage that affects assembly. If passivation, cleaning, coating or a particular cosmetic finish is required, it should be included in the RFQ and inspection criteria.

Carton identification and quantity control

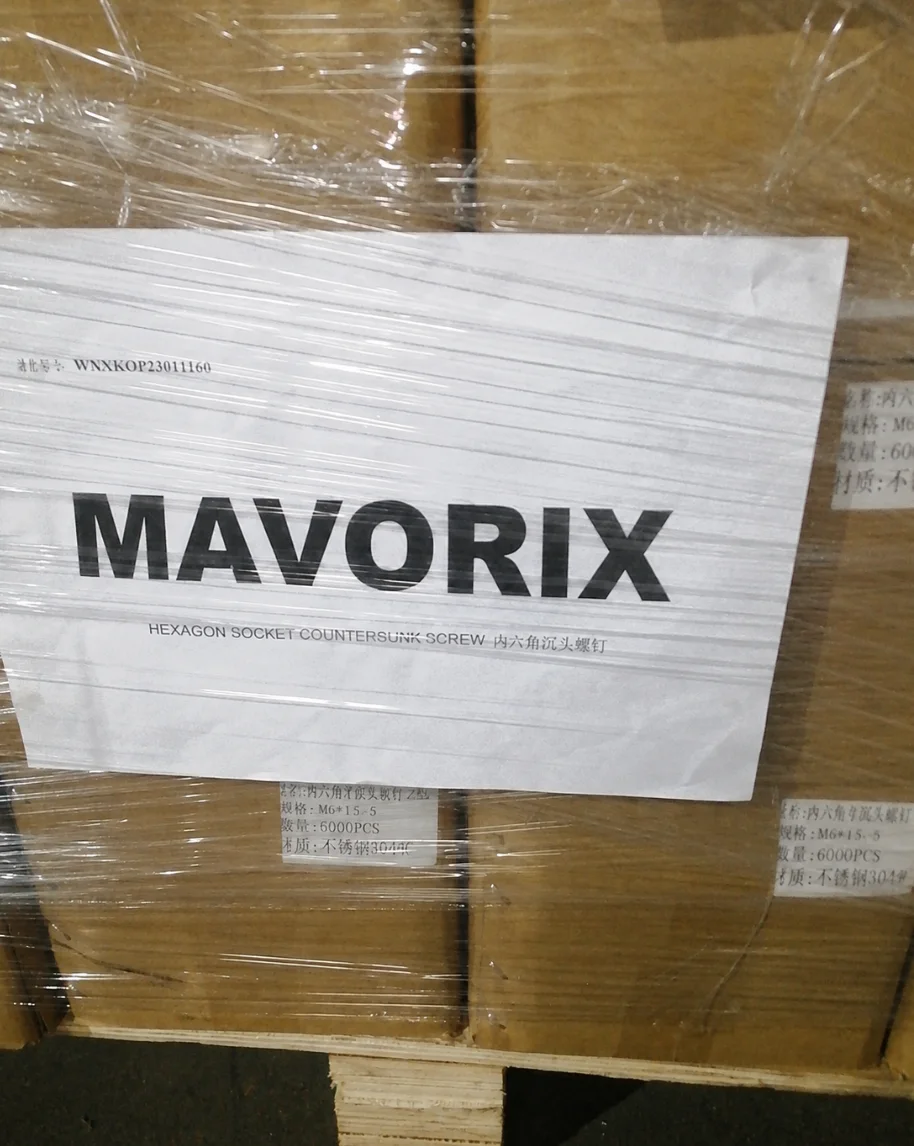

Once the sample check was complete, the screws were packed into labeled cartons. The close-up packing photo shows the MAVORIX shipment card together with individual carton labels. The visible labels identify the screw description, M6 x 15 specification, 6,000-piece quantity and 304 stainless steel material.

For bulk screws, carton control matters because mixed sizes can look almost identical through a plastic bag. Each carton should carry a stable item description and quantity, and different sizes or materials should not share an ambiguous label. When several fastener lines are consolidated, a carton number and packing-list reference make warehouse receiving much easier.

The batch reference visible in the packing photo also provides a traceable link between the packed cartons and the supplier's production record. MAVORIX does not publish the buyer's private purchase documents, but the physical label check remains part of the shipment record.

Palletized packing for shipment to Serbia

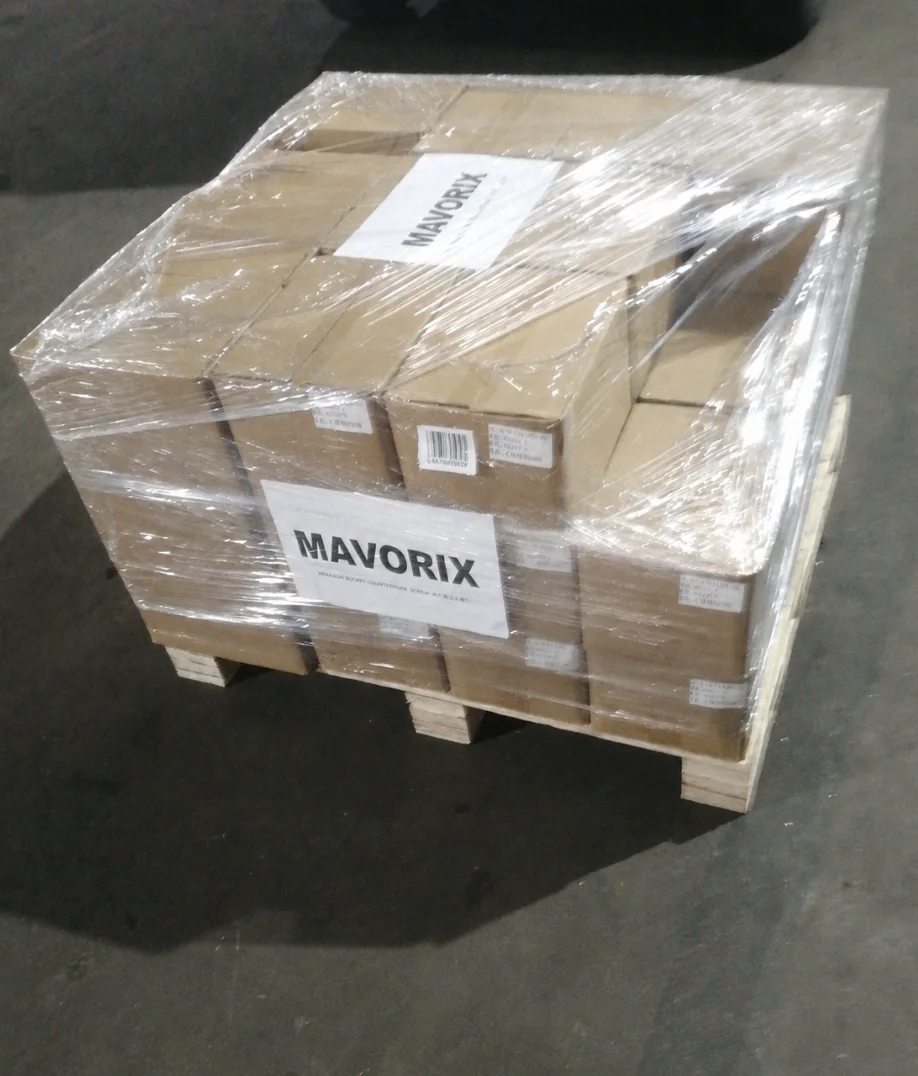

The completed cartons were arranged on a wooden pallet and secured with stretch film. The full packing photo shows the actual shipment footprint, carton arrangement, pallet base and MAVORIX identification card.

Fasteners are dense products. A carton that looks small can carry considerable weight, so export packing should be planned around handling strength rather than carton volume alone. The pallet base needs to support the load, cartons should be arranged without unstable overhang, and stretch film should hold the stack together during warehouse transfer.

For international shipment, the final packing plan may also consider carton weight limits, moisture protection, pallet treatment requirements, forklift access and the destination warehouse's unloading method. These details become more important when screws are consolidated with other industrial parts in the same shipment.

Why terminology matters in an international RFQ

Different markets do not always use the same name for this fastener. A buyer may search for:

• Stainless steel countersunk screw.
• Hex socket countersunk screw.
• Hexagon socket countersunk head screw.
• Socket countersunk screw.
• Flat head socket cap screw.
• M6 stainless steel flat head screw.
• 304 stainless steel machine screw.

These terms overlap, but they are not a substitute for a controlled specification. A clear RFQ should include a drawing or standard, thread size and pitch, length, head angle and diameter, socket size, material grade, property class if applicable, surface treatment, quantity, packing and documentation requirements.

For example, DIN 7991 and ISO 10642 are frequently associated with metric hex socket countersunk screws. This order's visible labels do not state either standard, so this case does not claim compliance with one. Buyers should name the exact standard they require and ask the supplier to quote against it.

Information to send when requesting a quotation

For accurate stainless steel countersunk screw sourcing, send:

• Product drawing or required DIN, ISO, EN, ASME or customer standard.
• Metric or imperial thread designation.
• Nominal diameter, pitch and length.
• Countersunk head angle and critical head dimensions.
• Internal hex or other drive requirement.
• Stainless steel grade, such as 304/A2 or 316/A4, defined by the required specification.
• Property class or mechanical-property requirement where applicable.
• Full or partial thread requirement.
• Surface finish, cleaning, passivation or coating requirement.
• Dimensional inspection and thread-gauge requirements.
• Material certificate, test report or certificate of conformity requirement.
• Quantity per size and acceptable packing quantity.
• Carton label, barcode and traceability format.
• Destination, pallet requirement and consolidation plan.

This information lets suppliers quote the same product and gives the inspector a usable acceptance checklist. It also makes price differences easier to understand: two screws with the same nominal size may differ in material control, dimensional standard, mechanical properties, surface treatment, inspection and packaging.

How MAVORIX supports fastener sourcing from China

MAVORIX acts as the buyer's China-side sourcing and coordination partner. For stainless steel screws and other industrial fasteners, support can include supplier comparison, RFQ clarification, sample follow-up, inspection coordination, packing-label review, warehouse receiving, consolidation and export preparation.

In this Serbia order, the useful evidence was practical: the real batch was recorded in bags, a sample screw was handled for inspection, carton labels showed the ordered identity, and the completed cartons were photographed on the pallet. Together, those records give the buyer a much clearer picture of the goods being shipped.

Buyers can combine fastener requirements with metal parts sourcing, quality inspection, export support and broader industrial sourcing services. For Serbia-specific purchasing support, see industrial sourcing for Serbia.

To request a quotation, send the screw drawing or standard, size list, material requirement, annual quantity, inspection scope and destination through the contact page.
