Product Overview
Standard catalog tools do not meet every machining requirement. Complex profiles, multiple machining steps, restricted spaces, special workpiece materials or tight dimensional requirements may call for a purpose-designed cutting tool rather than a standard item selected only by diameter and length.
Custom cutting tools are cutting tools whose geometry, dimensions, material and other technical details are defined around a particular part or machining operation. MAVORIX supports overseas manufacturers in sourcing custom cutting tools and non-standard CNC tooling from suitable suppliers in China. Buyers can provide an existing tool drawing, physical sample, workpiece drawing or machining requirement for supplier evaluation and quotation.
MAVORIX is a China-side industrial sourcing and supplier coordination partner. Our role can include supplier search, specification communication, quotation comparison, sample follow-up and coordination of approved batch supply.

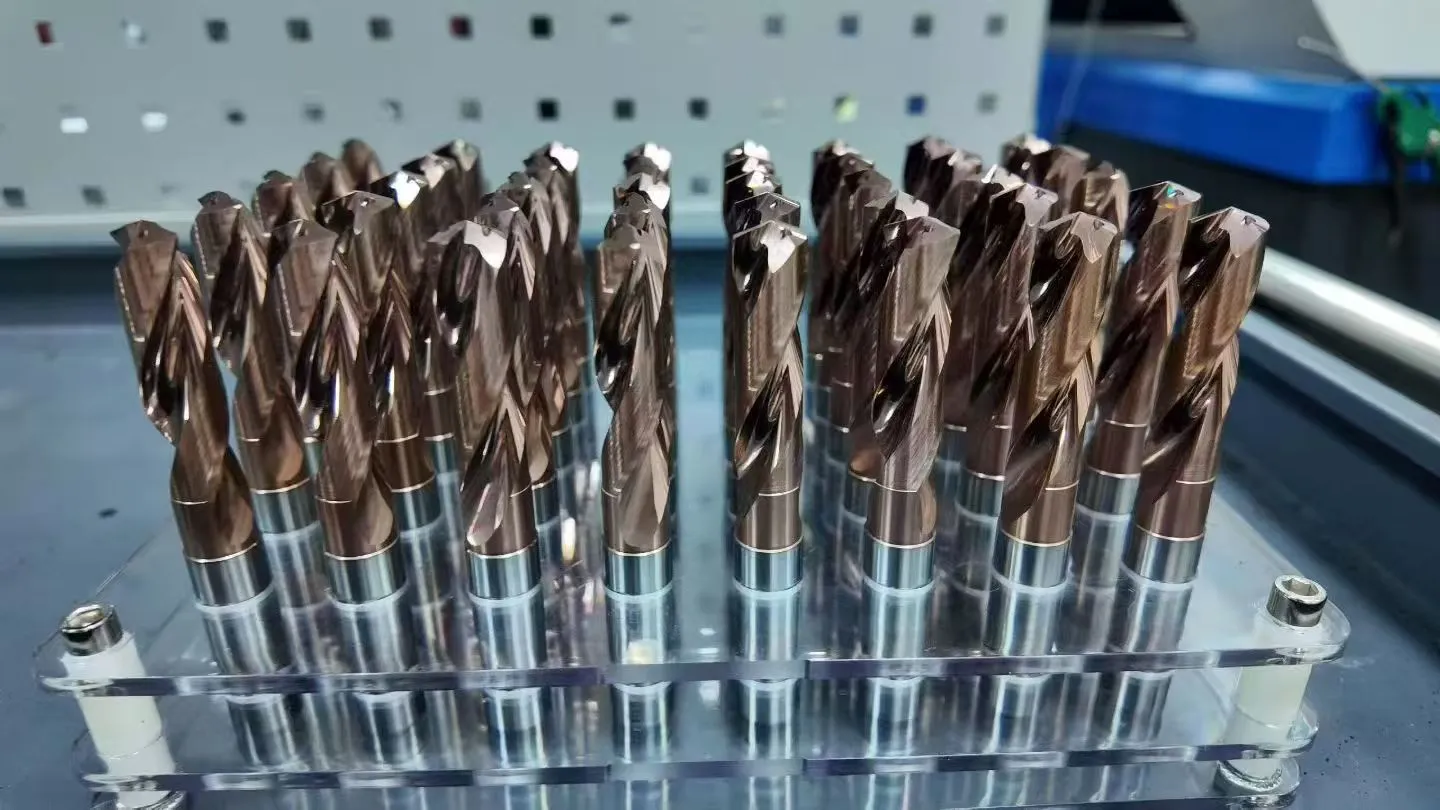

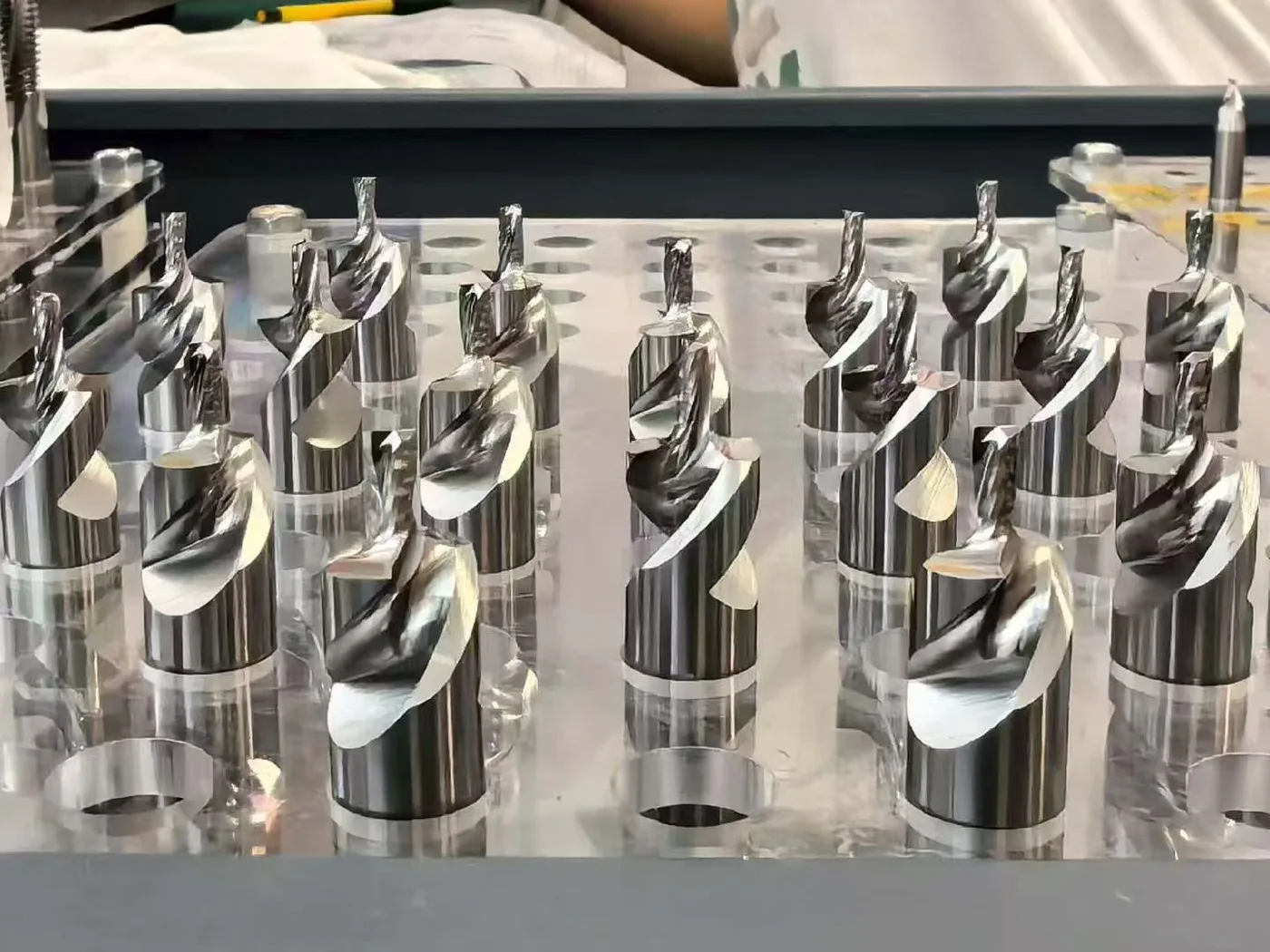

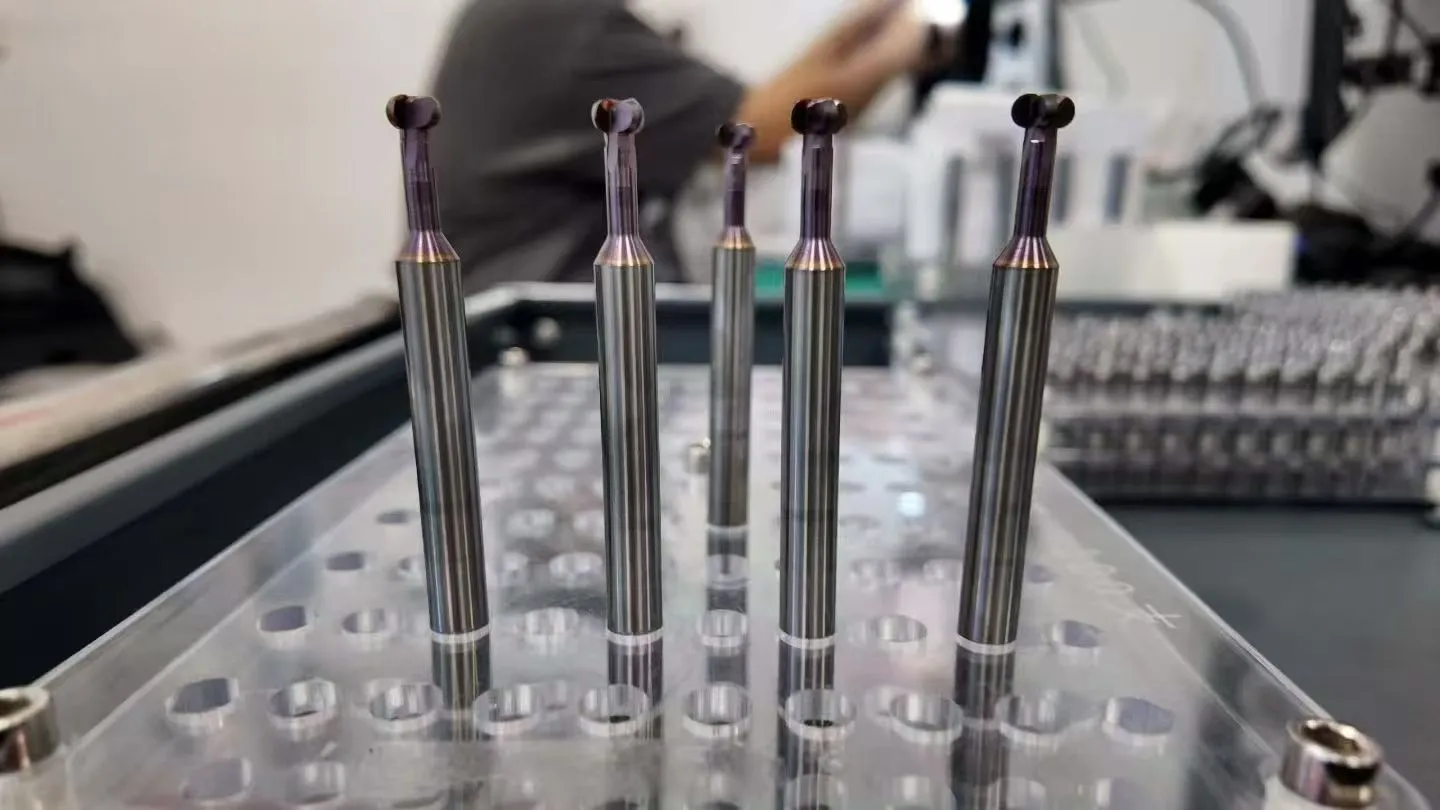

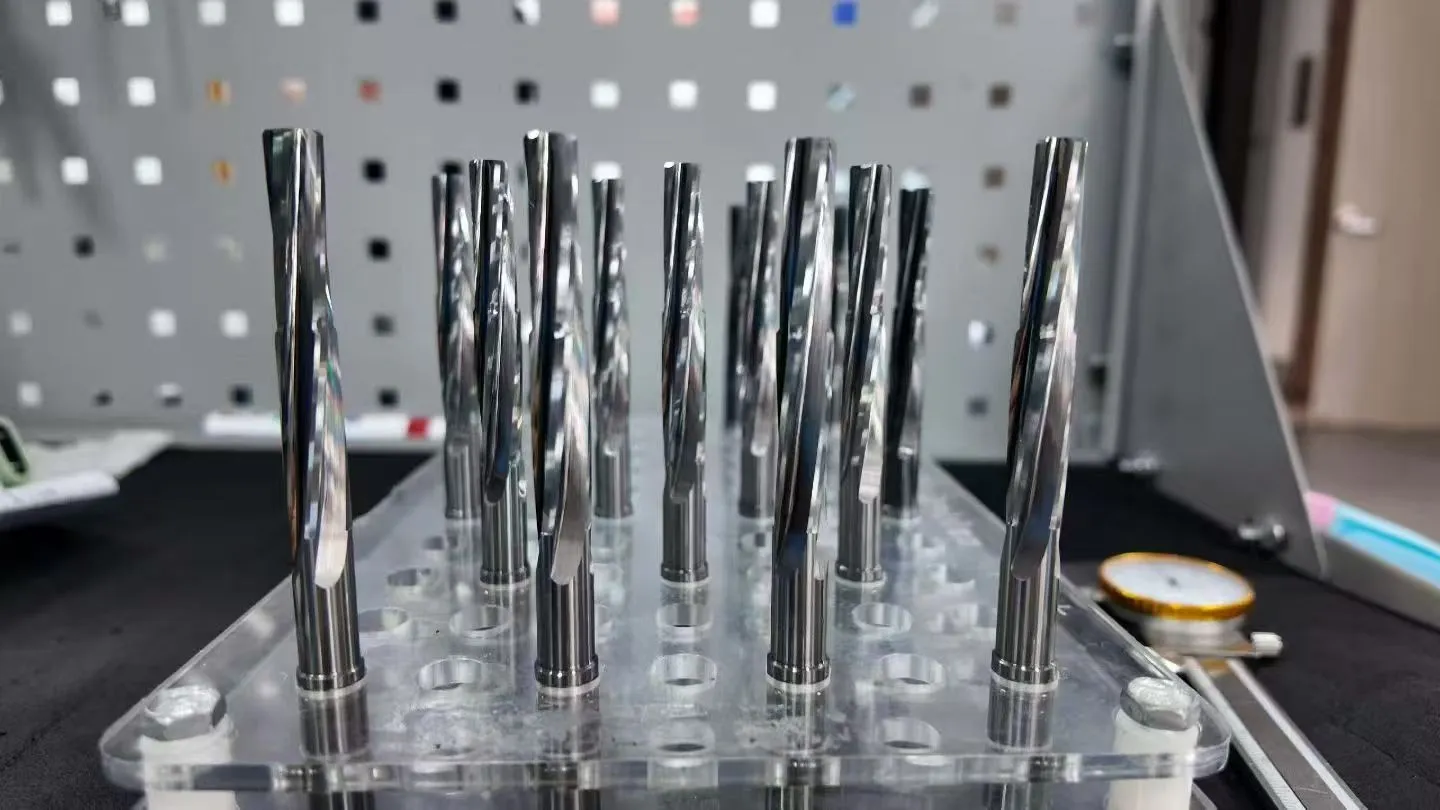

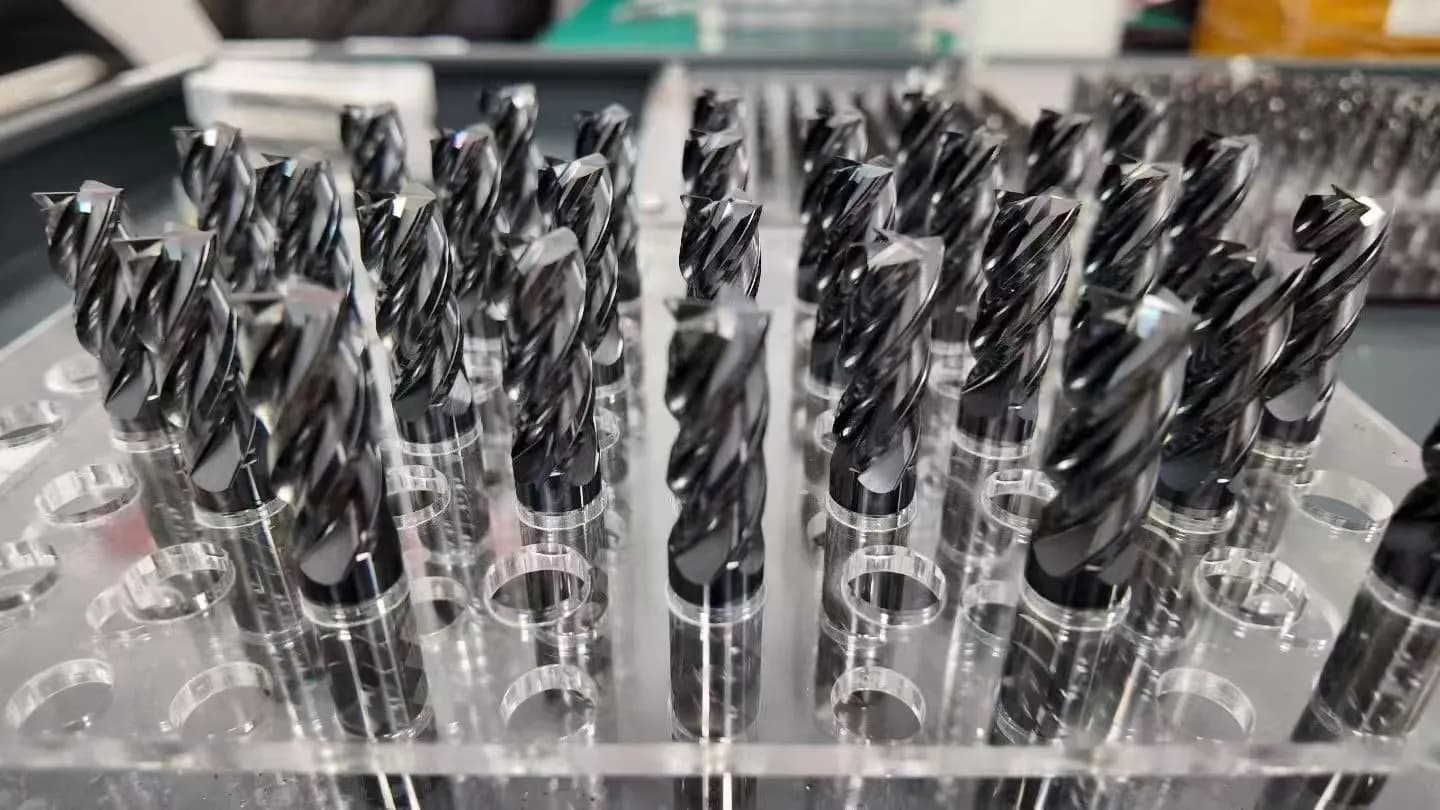

The tools shown on this page represent examples of custom cutting-tool configurations and should not be assumed to share the same material, coating or geometry.
Custom Tool Types We Can Source
A custom-tool request can be evaluated across the following general capability categories. Listing a category here describes the sourcing scope; it does not claim that every photographed tool belongs to every category.
- Custom End Mills
- Custom Reamers
- Form Cutting Tools
- Step Cutting Tools
- Profile Cutters
- Combination Cutting Tools
- Special Drills
- Application-Specific CNC Tools
Actual tool type and geometry are determined by the customer's drawing and machining requirements.
Made to Drawing, Sample or Machining Requirement
Made to Drawing
Send the latest controlled tool drawing with dimensions, tolerances, geometry, material or coating requirements, revision level and required quantity. The supplier can review manufacturability and identify any points that need clarification before quotation.
Made from Existing Sample
Provide a physical sample or clear photos from several angles, together with any known dimensions and application details. Sample-based reproduction may require measurement, destructive analysis or buyer confirmation of details that cannot be determined from appearance.
Designed Around the Machining Requirement
Send the workpiece drawing, material, machine information, operation sequence, target finish, tolerance and current process problem. A supplier can then evaluate a suitable tool concept and request the missing cutting parameters.
Information Required for a Custom Cutting Tool Quotation
A useful RFQ separates the tool definition from the machining conditions. Complete information helps suppliers compare the same scope and reduces avoidable drawing revisions after a sample has been started.
Tool Information
- Tool drawing
- Existing sample or photos
- Cutting diameter
- Shank diameter
- Overall length
- Cutting length
- Number of flutes
- Cutting direction
- Tool geometry
- Tolerance
Machining Information
- Workpiece material
- Workpiece drawing
- Machining operation
- Machine or spindle type
- Required surface finish
- Tool-life requirement
- Coolant condition
- Required quantity
- Existing tool problem
If a complete tool drawing is not available, buyers can send the workpiece drawing, existing tool photos and a description of the machining operation. The supplier may then request measurements, cutting parameters or a physical sample before confirming a proposal.
Tool Material and Coating Options
Tool material and coating cannot be selected reliably from a photograph. They should be evaluated together with the workpiece, operation, machine stability, cutting speed, feed, coolant condition, surface-finish target and required tool life.
Depending on the application and supplier capability, custom tools may be evaluated in solid carbide, HSS or other suitable tooling materials. Possible coating options may include:
- Uncoated
- PVD coating
- DLC
- Diamond coating
- Application-specific coatings
Available materials and coating options must be confirmed for each quotation.
Typical Applications
Custom tools are generally considered when the cutting task is defined by a particular workpiece or process rather than by a standard catalog description. Typical evaluation scenarios include:
- Machining a profile that is not covered by a catalog tool
- Combining two or more cutting steps into one operation
- Reaching restricted features or difficult tool-access areas
- Producing grooves, radii, chamfers or stepped features
- Matching a defined workpiece contour
- Improving process consistency for a repeat production part
- Replacing an unavailable or obsolete special tool
- Addressing an application-specific finish or tool-life target
These application examples are general. Final suitability depends on the complete machining data and supplier review.
When Does a Custom Cutting Tool Make Sense?
A custom cutting tool can make sense when a standard tool cannot generate the required contour, when several tool changes create excessive cycle time, or when tool access forces a special neck, reach or cutting profile. It may also be considered for stable repeat production where one purpose-designed tool could reduce setup variation.
The decision should compare more than the quoted tool price. Buyers may need to consider programming and setup time, cycle time, tool-change frequency, scrap risk, inspection needs, tool life and the cost of maintaining spare tools. A custom design is not automatically the best option for every low-volume job.
Small batches may be feasible, but quantity, geometry, material, coating and inspection requirements affect setup cost and supplier choice. These factors should be reviewed during quotation rather than assumed from a previous order.
How MAVORIX Supports Custom Tool Sourcing
Custom tooling RFQs often require several rounds of technical communication. MAVORIX helps overseas buyers keep that China-side process organized while the supplier remains responsible for manufacturing feasibility and technical proposals.
- Review the buyer's drawing, sample photos and machining brief
- Identify suitable China-side custom-tool suppliers for evaluation
- Coordinate technical questions between buyer and supplier
- Compare quotation scope, material proposals and coating proposals
- Follow sample production and supplier-provided inspection records
- Coordinate sample feedback and drawing revisions
- Follow approved batch supply and pre-shipment checks
- Consolidate tooling with other industrial purchasing requirements when practical
Related requirements can be coordinated through our industrial sourcing, industrial machinery sourcing and contact workflows. Supplier proposals still require buyer approval against the applicable drawing and machining conditions.
